Glass stand-off clamps are special elements designed to connect glass structures or attach glass to other surfaces such as concrete, metal or wood. They provide a strong, reliable and secure attachment while maintaining the aesthetics and minimalism of the design.
Thanks to these fasteners, it is possible to create glass fences, balconies, stair railings and other glass structures that harmonize with architectural and interior designs. In addition to reliability, point glass fasteners give structures a finished look, making them not only safe but also modern.
AISI 304 stainless steel is used in the production of glass fixing connectors, which makes ODF products particularly reliable and durable. Stainless steel offers several key advantages:
Firstly, this material is resistant to corrosion, which is especially important for structures used in high humidity, outdoors or in aggressive environments. Thanks to its chromium content, a protective oxide layer forms on the steel’s surface, preventing degradation from external factors.
Secondly, stainless steel is characterized by its resistance to mechanical stress, guaranteeing the safety and durability of glass structures. Stand-off clamps made of this material can withstand significant weight loads and intensive use.
Its aesthetic properties – a smooth, shiny surface that retains its appearance for many years without complicated maintenance – make it the ideal choice for modern architectural and design solutions.
Glass connectors are available in various types to meet the diverse requirements of modern designs and constructions. One of the key parameters is the diameter – options of 30, 34, 40 and 50 mm allow you to choose the optimal fastener size based on the scale of the structure and the thickness of the glass panels. The threads, available in sizes M8 and M10 mm, provide a strong connection suitable for different loads, ensuring stability and reliability.

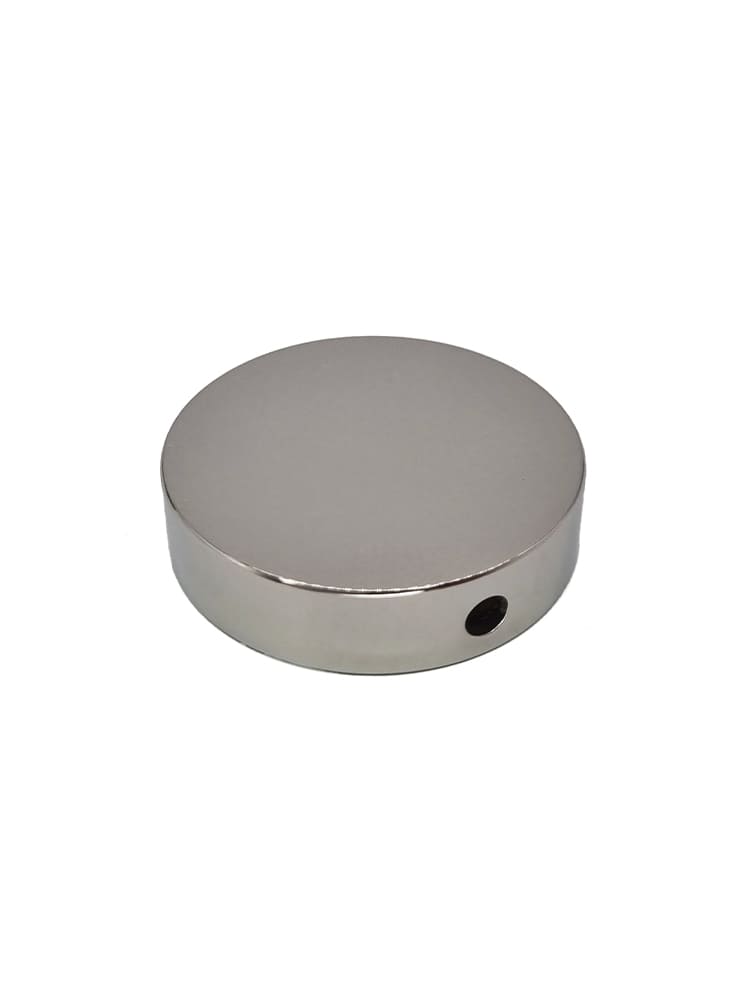

The shape and design of the clamping part of the connector also play an important role. Some models have a side keyhole, which facilitates installation and adjustment, while others, known as “nickels,” lack a lateral opening, creating a more minimalistic and sleek appearance ideal for aesthetically significant projects. The radiused clamping section allows the connector to adapt to glass elements with a certain curvature, creating a neat and secure connection.
Another important aspect is the distance provided by the connector. Length options of 10, 15, 20, 25, 30, 40 and 50 mm allow you to design structures with different spacing between glass elements or their attachment to supporting surfaces. This opens up a wide range of possibilities for creating unique design solutions.

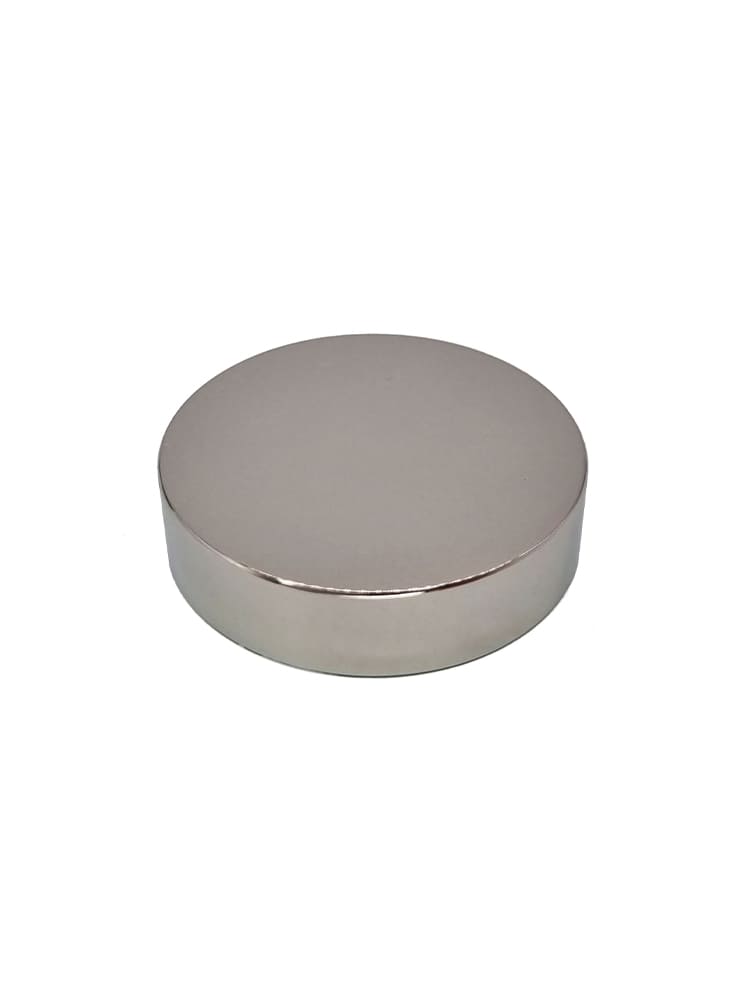

The polished surface on fittings is achieved through a complex mechanical process that involves the sequential removal of micron layers of material to obtain perfect smoothness and a mirror shine. The initial stage includes rough grinding with coarse abrasives to eliminate irregularities, casting defects, and machining marks. Gradually reducing the abrasive grain size minimizes scratch depth, creating a uniform, smooth surface. The final polishing is carried out using felt wheels and polishing pastes containing microscopic abrasive particles, resulting in a characteristic mirror effect.

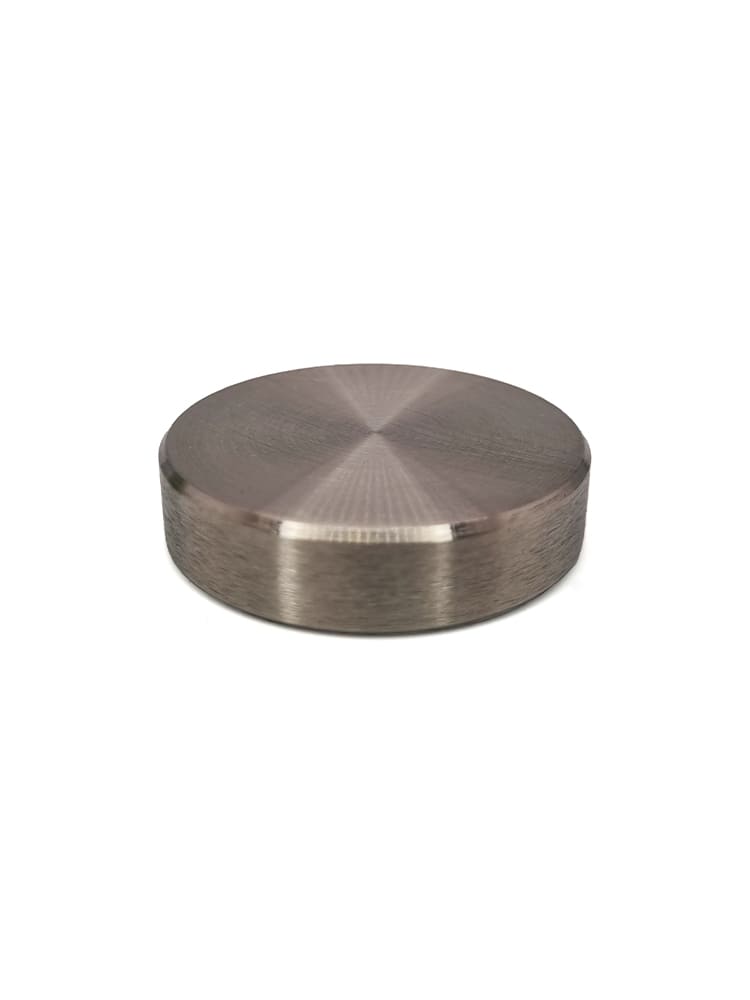

Creating a matte metal surface is a process in which a rough texture is transformed into a soft, diffuse effect through the mechanical action of abrasives. The metal is first cleaned of contaminants, oxides, and coating residues to prepare it for grinding. Abrasives with varying grain sizes, from coarse to ultra-fine, gradually remove the top layer, resulting in a uniform surface. Circular or linear tool movements ensure even impact distribution, avoiding overheating or local damage.

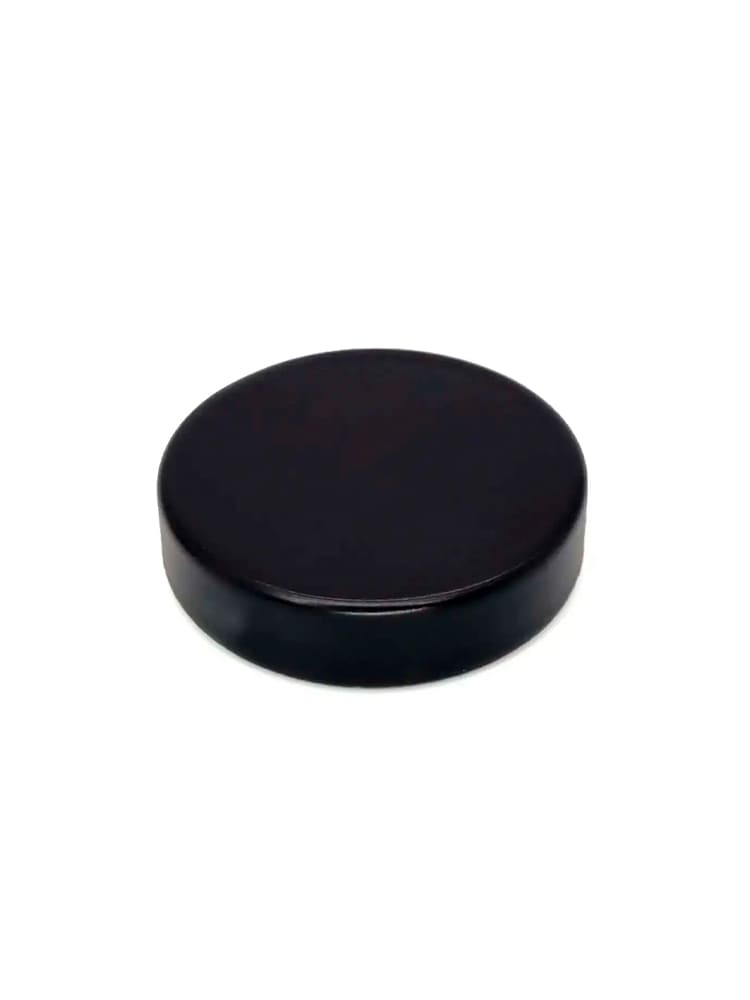

Black powder coating is a completely different technology. First, the part is cleaned and degreased so that the paint is evenly distributed over its surface. Then, a special powder is applied to the fittings and charged in an electrostatic field so that it adheres to the metal, after which the part is baked in a specialized oven. Under high temperatures, the powder melts, forming a durable, homogeneous polymer film. This coating not only gives an elegant black color but also protects the part from corrosion and mechanical damage. A rich range of RAL shades offers unlimited possibilities for creating a unique appearance tailored to any individual design solution.
The choice of glass connectors is a key stage that determines not only the functionality but also the durability, reliability, and aesthetics of the entire structure. These elements must be perfectly selected, taking into account various factors:
– Matching the thickness of the glass (usually between 6 and 16 mm). Correctly selected fasteners ensure a strong connection and structural stability, whereas miscalculations can lead to damage to the glass panels.
– The weight of the glass panel. The connectors must be able to support the specified load, especially for massive glass elements such as building facades, railings, or fences. An incorrect choice can cause deformation of the elements or reduce the overall stability of the structure.
Therefore, precise calculations and the proper selection of materials are crucial to ensure that glass structures not only perform their functions but also maintain an attractive appearance for many years.
